What's New in Revit 2023

Just a few days after the 20th anniversary of the Autodesk acquisition of Revit, the 2023 version has dropped. Similarly, the 20th edition of my first Revit book has already been updated and is in the publisher’s hands! For a trip down memory lane, check out this post: Carol Bartz and Phil Bernstein Signed my First Revit Book.

With the new version now out, we get to talk about what’s new and improved in the yearly release for Autodesk® Revit®. This is my seventh annual AECbytes ‘what’s new’ article, and we appreciate the value you find in this resource. You may want to sit down, get comfortable, maybe grab a coffee first… because Revit 2023 is packed full of exciting new things!

Let’s start with my top five favorite features in Revit 2023. Keep in mind that I am a registered architect (WI) and work at Lake|Flato Architects, which is a top ranked architecture firm. Thus, no structural or MEP items in my Top Five list, sorry.

Here are my top 5 new features:

  • Duplicate Material and Assets
  • Cloud path to material textures and decals
  • Energy Analysis Model (EAM) creation enhancements
  • Performance enhancements
  • Page Order for Printing

Duplicate Material and Assets

This feature has to be my number one favorite new thing in Revit 2023 because it was my idea! Back in 2016, I posted a Revit Idea called Duplicate Material and Assets, which (just occurred to me now) the title of my post is exactly the title of the new command … which is funny because there was lots of discussion about what the command should be called so as to not confuse the alternate command that allows the original results to still be achieved.

In case you are not sure what problem this solves, check out this post I wrote about it: Duplicating a Material and its assets.

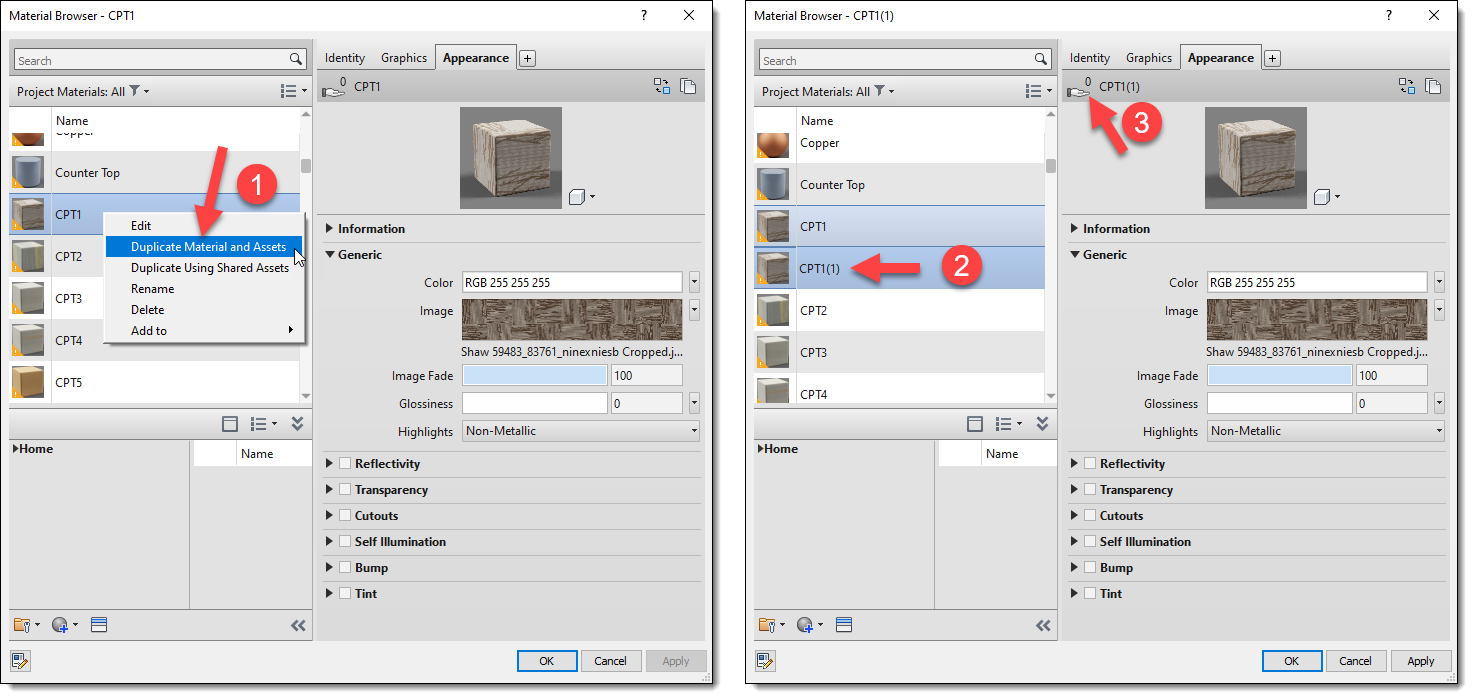

In the Material Browser, simply right-click on a material and you will now find two clearly labeled options to duplicate a material.

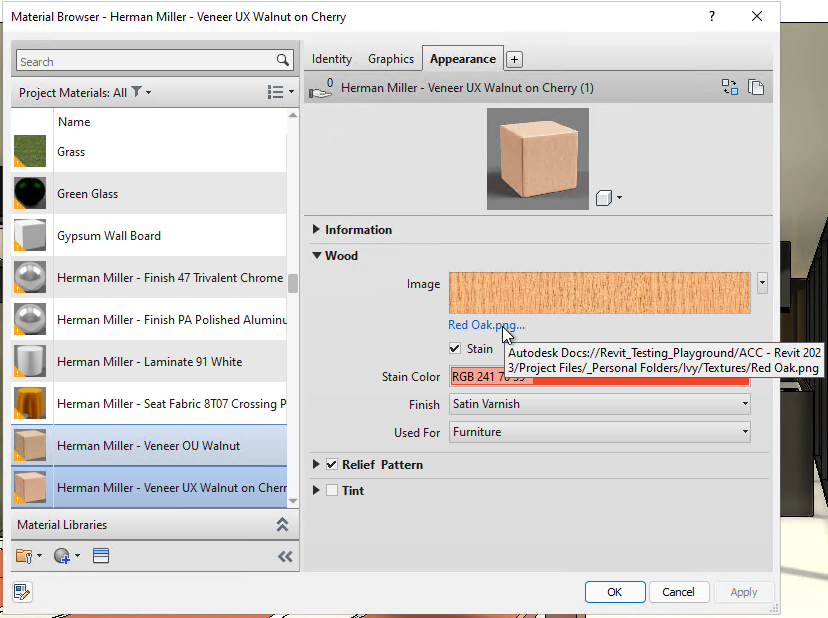

Cloud Path to Material Textures and Decals

You can now set the path of materials and decals to sever-based locations, including BIM 360 hubs! You can even build your own custom material sever. Thus, we finally have a way for multiple firms working together, using BIM 360, to share material textures! This is particularly great for shared rendering activities.

Energy Analytical Model Enhancements

This is another feature near and dear to my heart as we use it weekly, if not every day, at Lake|Flato. Autodesk has improved the accuracy and performance of the voxel algorithm (2-3x and no memory limits) that creates the energy analytical model (EAM) within Revit. The EAM is used in energy modeling, both locally (Systems Analysis using Open Studio and EnergyPlus) and in the cloud (using Insight). I was involved in this beta effort with Autodesk, among a group of select customers. Robustness with Systems Analysis (EnergyPlus) should be greatly improved.

Note: If you are interested in getting involved in the development of Revit, check out this Autodesk Community Voiced post I wrote on How to get involved in the development of Autodesk software.

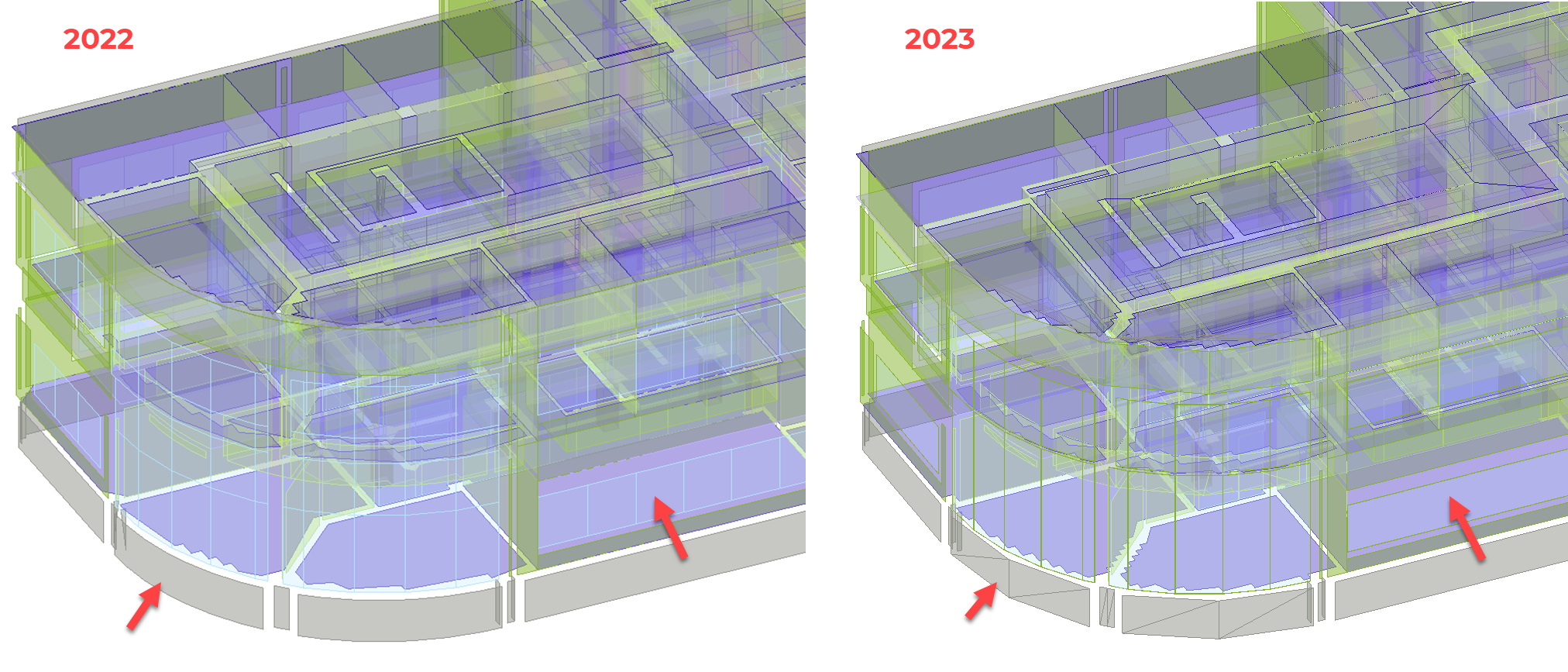

Notice, in the image below, the comparison between the 2022 and 2023 EAM results. In 2023, the EAM was created twice as fast, and larger common curtain wall areas have been combined. Also, the curved wall has been faceted to match, more accurately, what is possible in Energy Plus.

Performance

Who doesn’t want better performance in Revit! Let’s start with these two and then list several others:

  • Onscreen controls
  • Rewind in steering wheel

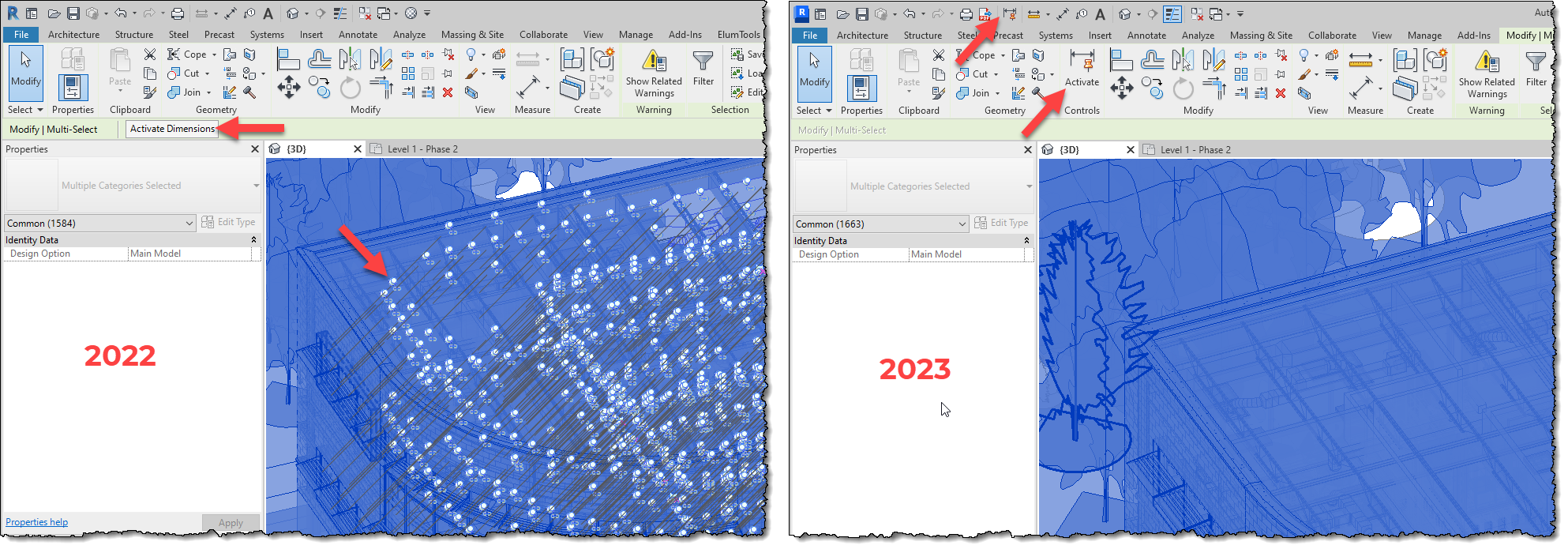

The on-screen controls enhancement was another beta I was involved in. This is a smart improvement as it reduces clutter when elements are selected (which often created clusters of pin icons not even possible to accurately select) and it also increases performance due to all the icons being resource intensive bitmap-based edits to the screen that Revit needed to make. Now, when multiple elements are selected, no icons are shown by default. However, if you only select a single element, you will see the pin icon.

This enhancement also includes a UI change as shown in the image below. The toggle to show or not show the pins has been combined with the Activate Dimensions command that would only appear on the Options Bar contextually. Now, the toggle is visible on the Quick Access Toolbar and the Modify tab.

Also related to the on-screen control visibility management is the Worksharing icon, which allows you to check out an element. I voted to just remove this altogether as you can still just right-click and select to check it out in the context menu. Thankfully, it will be off by default and people will have to manually turn it on if they really need it (although you may not know it is decreasing performance on your computer).

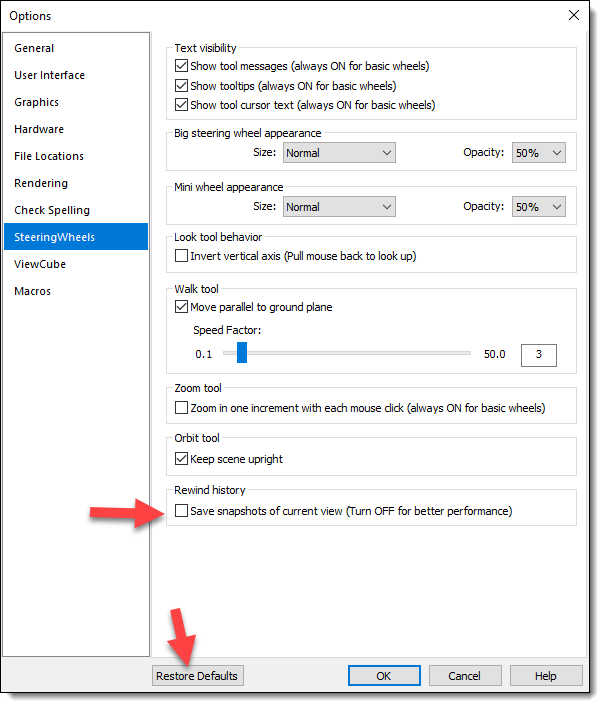

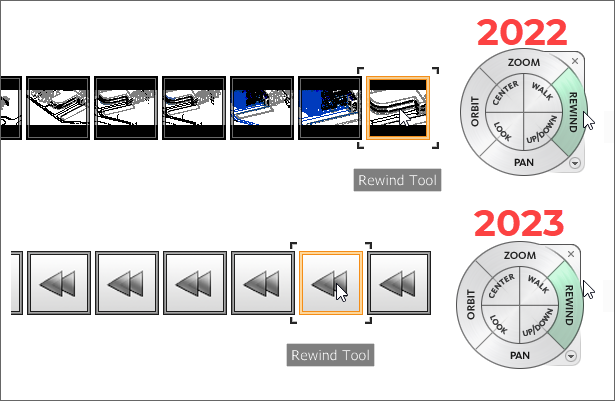

Another performance enhancement is to disable the raster image snapshots being taken every time you move around within a 3D view. This was/is being done in support of a feature many may not even know about (although I use it often) … that is, the Rewind tool within the SteeringWheels feature. The option to toggle this on, if desired, can be found within the Options dialog as shown in the image below.
Note that the Rewind function will still work, it just does not have the thumbnail references as shown in the second image below.

Additional areas of performance enhancements are:

  • Large number of view filters
  • Slab edge editor (via optimized onscreen bitmap controls)
  • Editing complex sketch elements
  • Copying large numbers of sketch-based elements
  • Large lists in Type Selector
  • Skipping redundant room element generation
  • Displaying rebar in ACC viewer
  • Structural analytical model overhaul

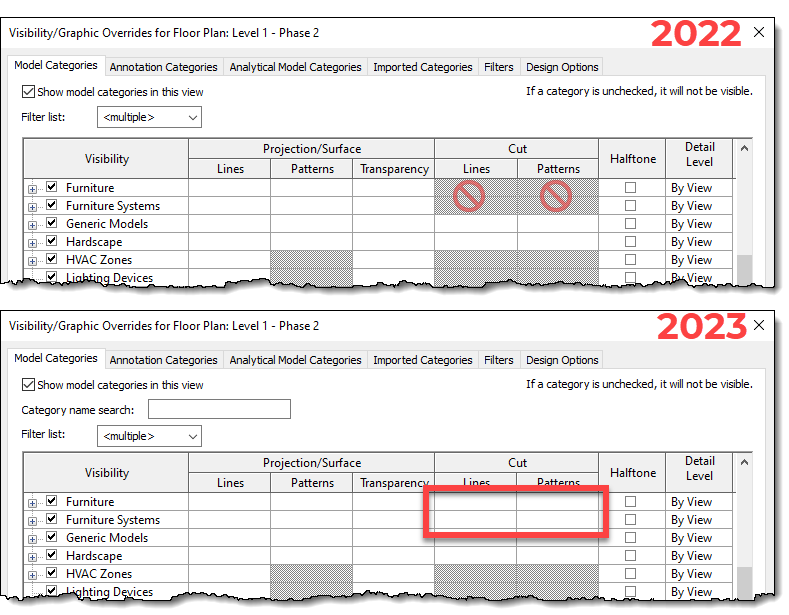

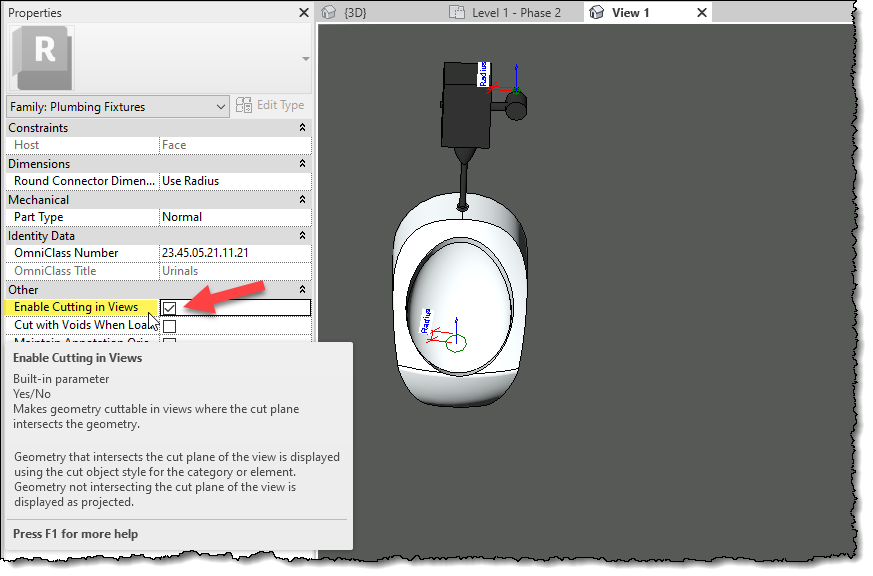

Additional Cuttable Categories

Several categories are now optionally cuttable based on a toggle within Revit families for these categories:

  • Furniture
  • Furniture Systems
  • Specialty Equipment
  • Plumbing Fixtures

This will help deal with the problem where a section through a shower (i.e., plumbing fixture) showed the controls/shower head that was behind the section.

Additional Taggable Categories

New category-based tags are available for element types that were not previously possible to tag by category.

  • Columns (Architecture)
  • Entourage
  • Fascias
  • Gutters
  • Roof Soffits
  • Handrails
  • Pads
  • Ramps
  • Slab Edges
  • Top Rails
  • Wall Sweeps
  • Model Group
  • RVT Links

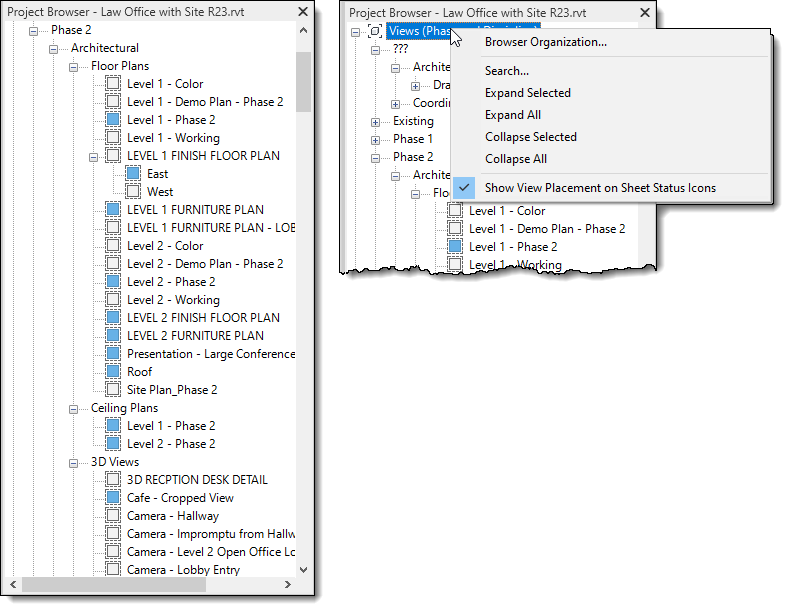

Project Browser - View Placed on Sheet Icon

A new icon has been introduced within the Project Browser to graphically indicate whether a view has been placed on a sheet or not. When the icon is filled, it means that view has been placed on a sheet. This applies to all views and schedules which can be placed on sheets. Right-clicking on the Views node provides an option to turn this functionality off if desired.

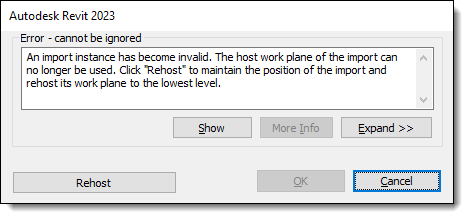

Place CAD Link at Named Reference Plane

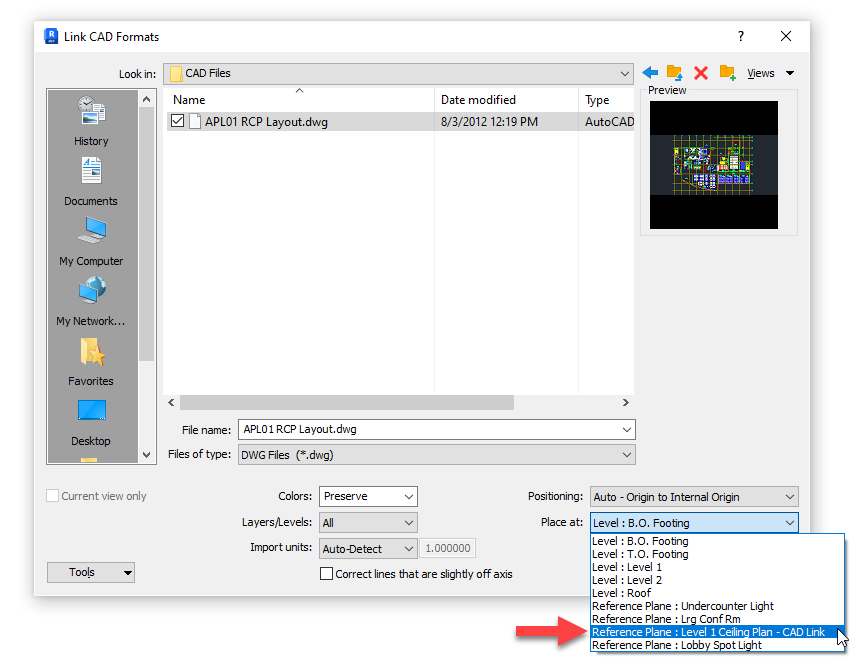

When linking a CAD file, named reference planes are now a placement option within the Link CAD Formats dialog as shown. If the reference plane is deleted, the link will persist with the warning shown in the second image below.

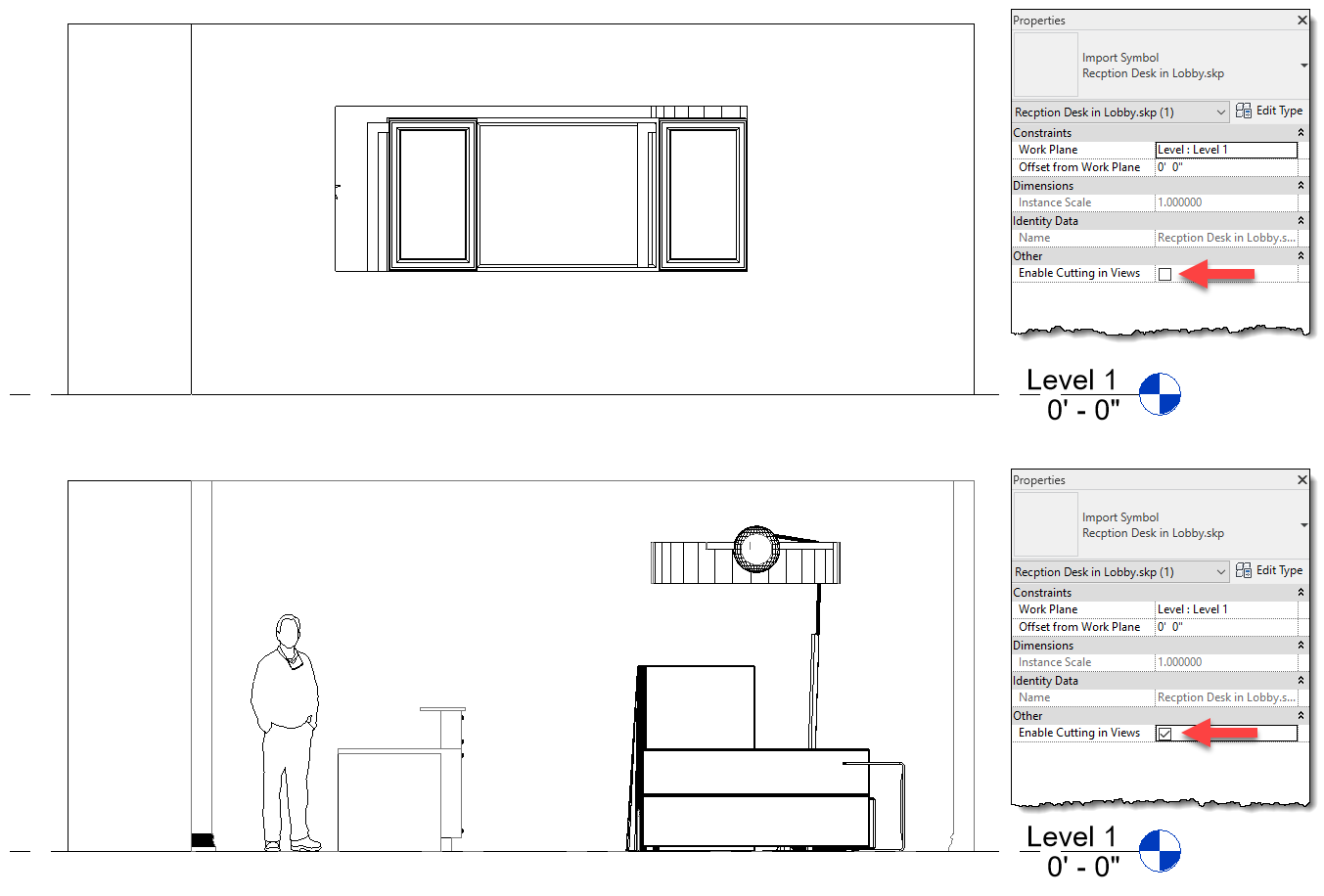

Enable Cutting in Views – New Toggle for Linked CAD

In the past, in order to get a linked 3D DWG or SKP model to cut in a section, elevation, or plan view, you had to nest it into an in-place family. Now, you can simply select the linked element and toggle the Enable Cutting in Views instance parameter as shown below. The example is a section view which cuts through the center of a 3D SketchUp model of a lobby space.

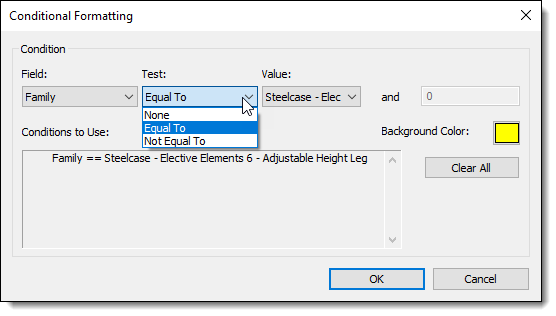

Conditional Formatting by Family and Type in Schedules

You can now perform conditional formatting for Family and Family and Type parameters within Schedules. This is limited to the “Tests” shown in the image below.

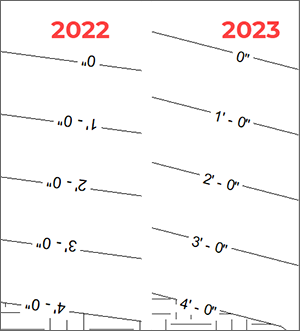

Contour Label Enhancement

Contour labels are now always right side up, rather than reading upside-down as they would sometimes become due to the angle of the toposurface contour line relative to the screen/view.

Common Built-In Parameter Added to Model Groups and Links

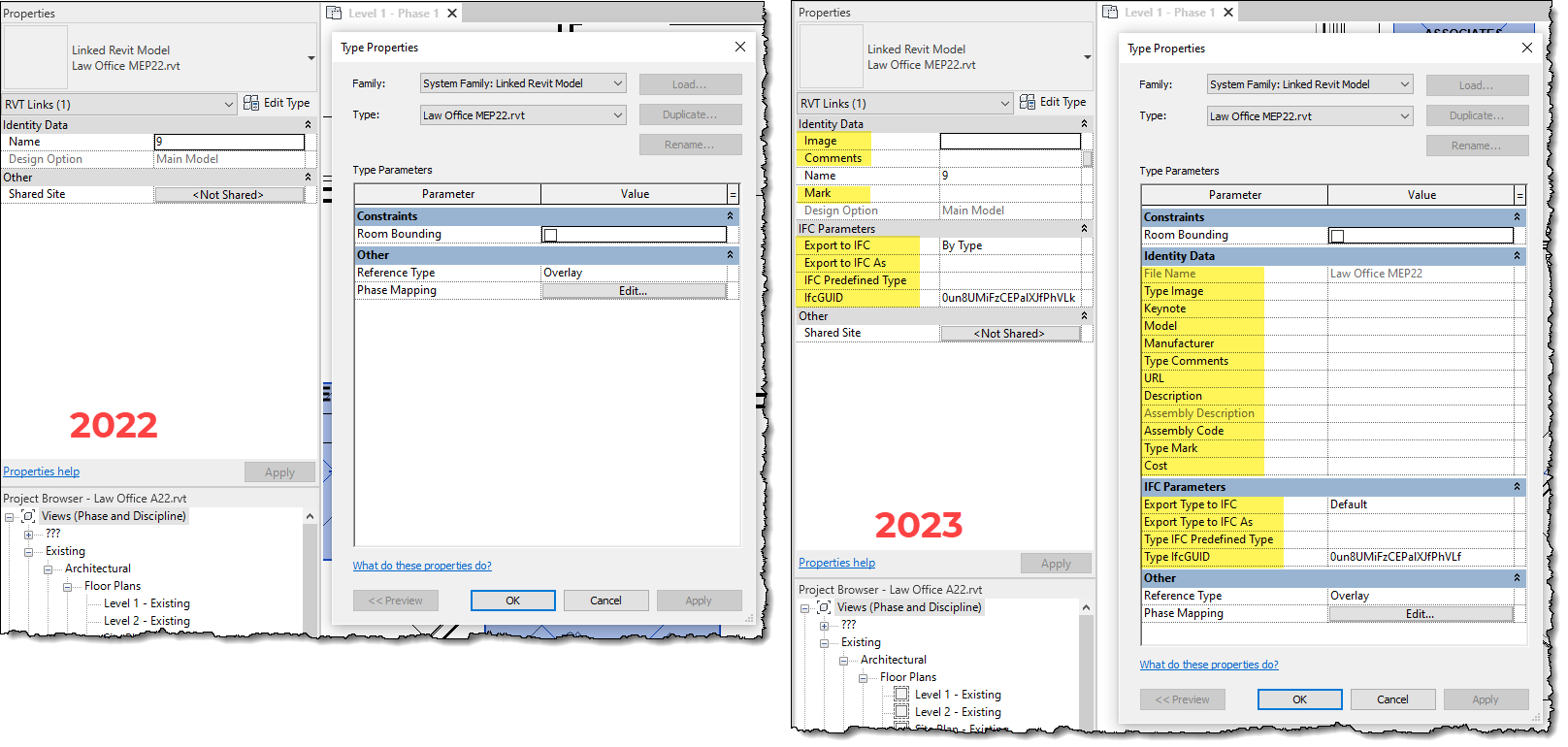

When a Model Group or Link is selected, there are now a lot more built-in parameters present. Combine this with the new ability to tag Model Groups and Link, and some interesting opportunities present themselves. Of course, in 2022 and 2023 we can create custom parameters for Model Groups and Links, so there are a lot of interesting opportunities here!

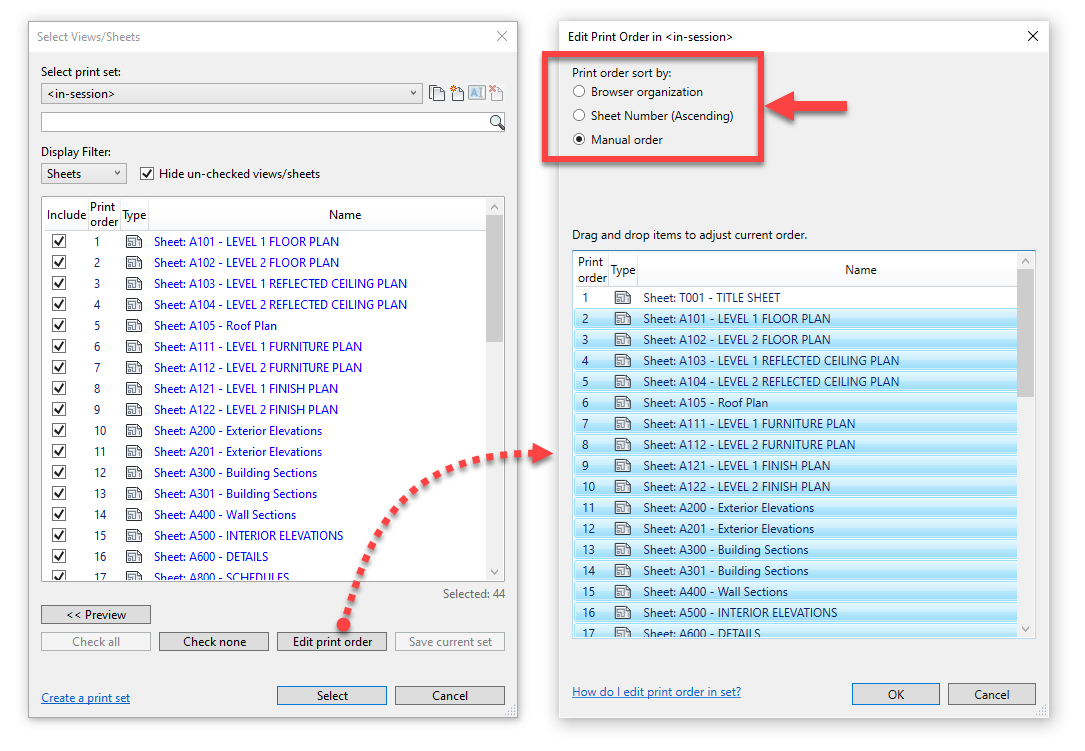

Edit Print Order in Print Set

This will be a popular feature likely to be used more than any other new feature in this release. Until now, you have to manually arrange sheets within PDF editing software or use a feature in Bluebeam, which I wrote about here in 2018: Printing Revit Sheets in Order using Bluebeam Revu CAD.

As shown in the image below, the process is very intuitive. Notice there is even an option to make the print order, for a given Print Set, match the Project Browser organization. This feature works across all related print and export tools (print and export to PDF) as well as within a BIM 360 hosted project.

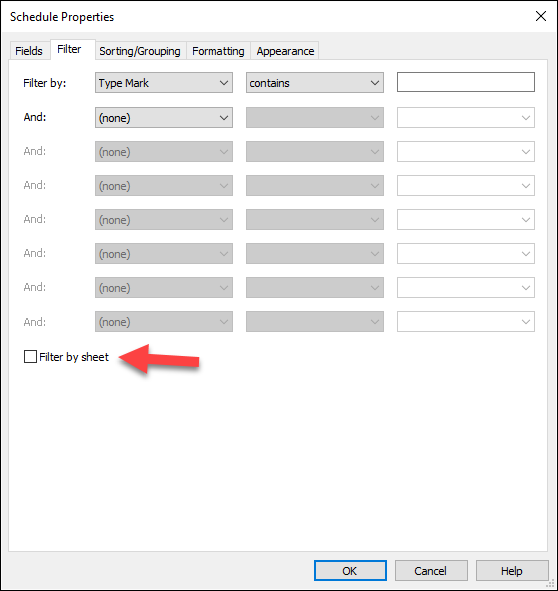

Schedule Enhancement – Filter by Sheet

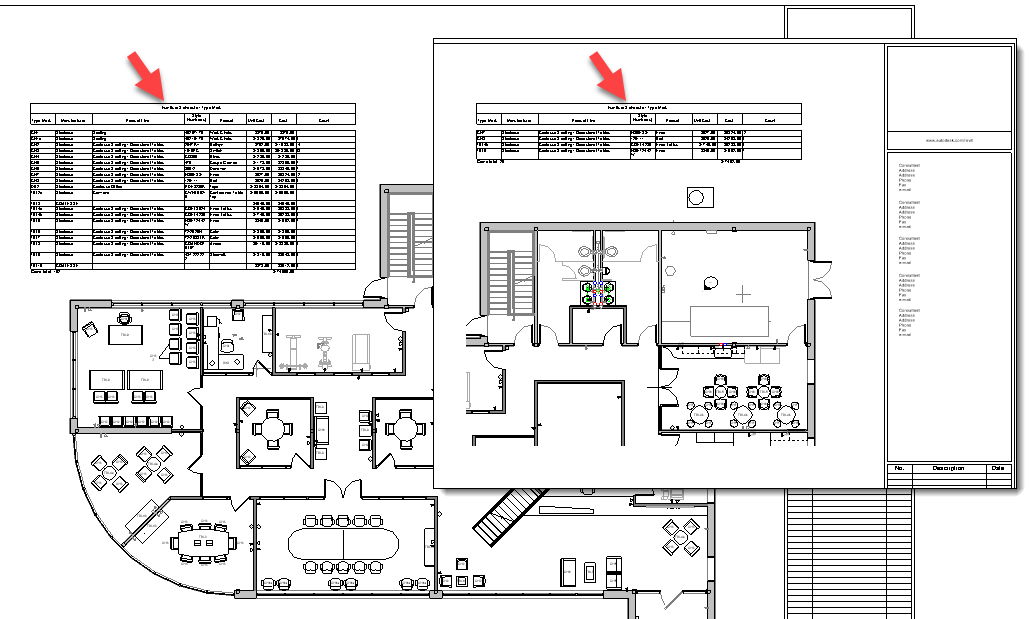

Most categories are now supported for this feature, which allows a schedule to only list the elements visible on the sheet it was placed on. With the Filter by Sheet option selected in Schedule Properties, the schedule will now change depending on what is visible on the sheet (among multiple views), and what sheet it is on. Note that the same schedule can be placed on multiple sheets.

Swap View on Sheet

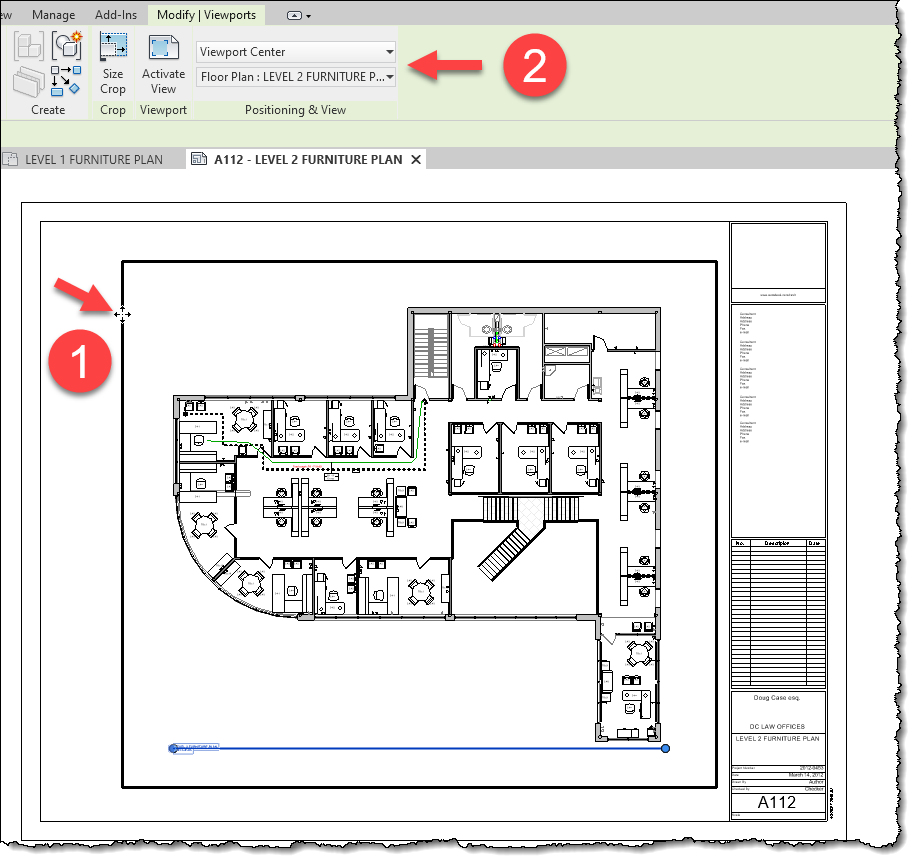

This is a really cool new feature … selecting a view on the sheet now offers the ability to swap it out with another view, just like selecting a family and swapping it out with another one via the Type Selector. In this case, the controls are on the Ribbon. Notice there is also a Viewport Position option, where you can select from Viewport Center and View Origin. Of course, you cannot swap to a view that is already on another sheet. This can be helpful when setting up sheets and making sure views align between sheets.

This feature, along with the new Filter by Sheet for schedules, and the ability to duplicate a sheet (added in 2022) opens up interesting options for some low level automation.

Solar Study Overhaul

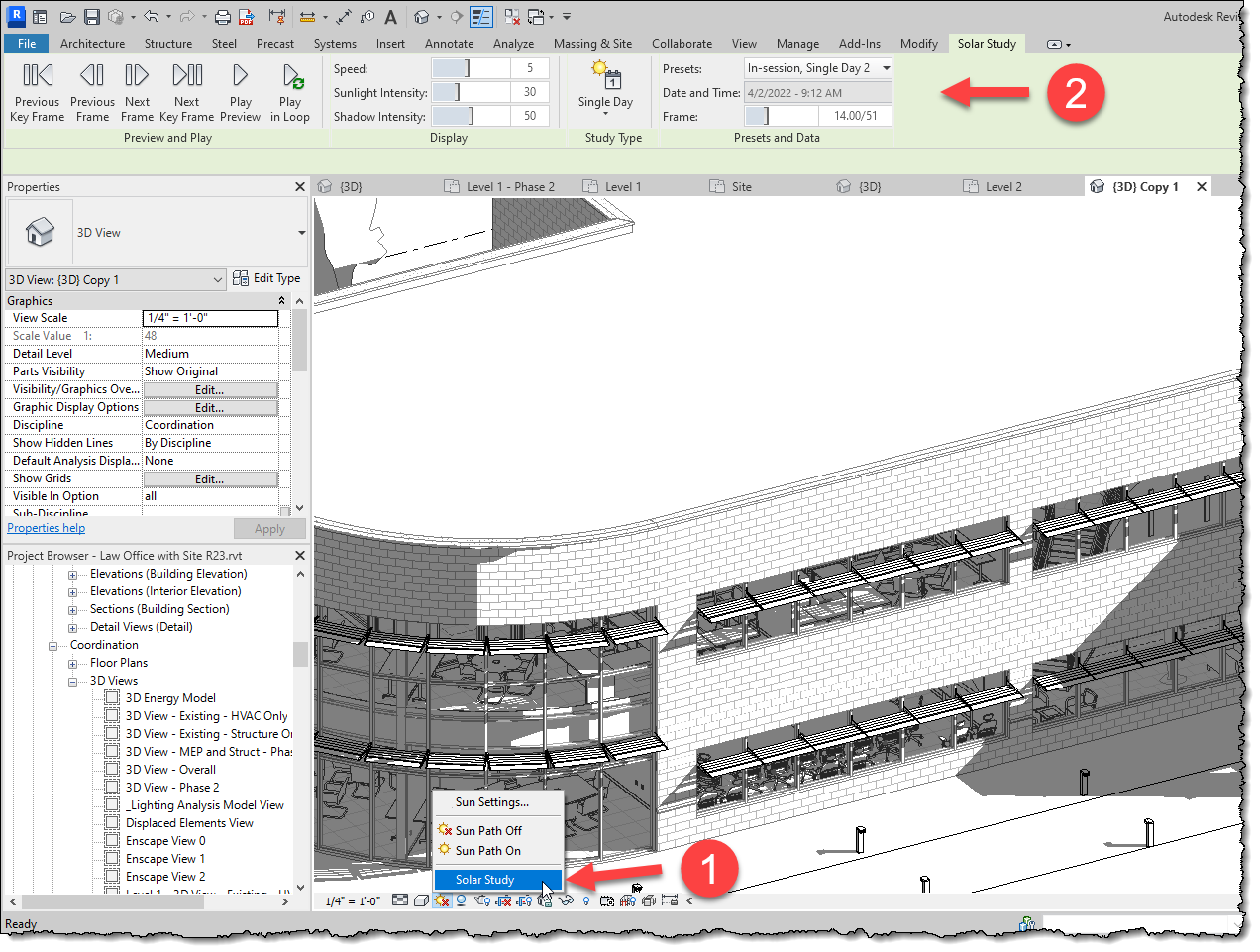

Although this was mostly possible in Revit previously, not many people seemed to know about it. Now, there is an easy-to-find toggle on the View controls in the lower left corner of the view, called Solar Study (Tip: Shadows need to be on, but Sun Path does not). When this refreshed tool is engaged, there is a cool Solar Study tab on the Ribbon with controls as shown below.

In addition to improved performance over the old version of this feature, it is now possible to move/orbit the view while the solar study is running. Of course, mileage (i.e., performance) will vary depending on the complexity of the model and the specifics of your computer (this appears to be a CPU-based feature, not GPU).

Preserve Values when Removing Room Schedule Key

When using Room Schedule Keys in the past, when you remove it, all the associated parameter values were removed. Now, when the key parameter is set back to None, the last-assigned values are preserved for Rooms and Areas.

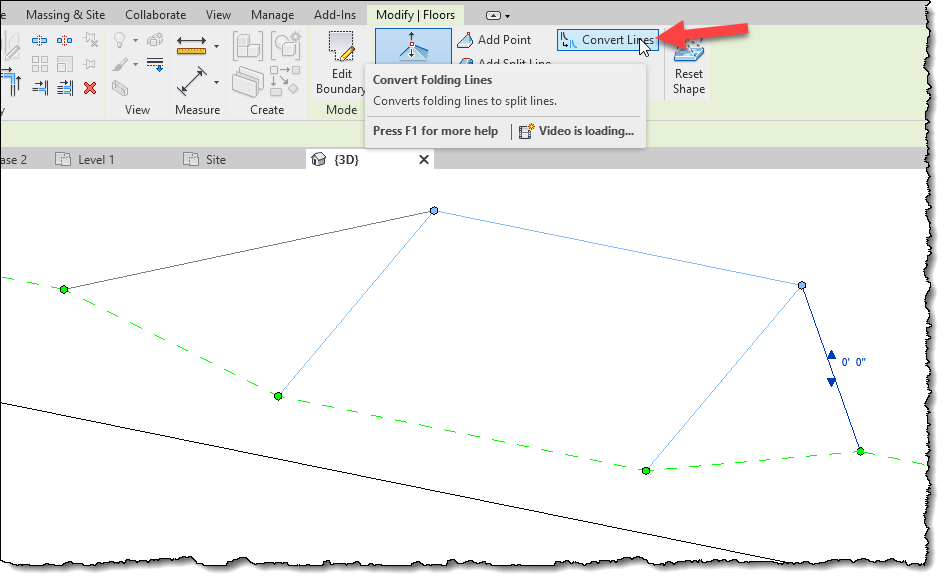

Convert Floor Folding Line to Split Line

When modifying floor sub-elements, you can now convert a folding line to a split line as shown in the image below.

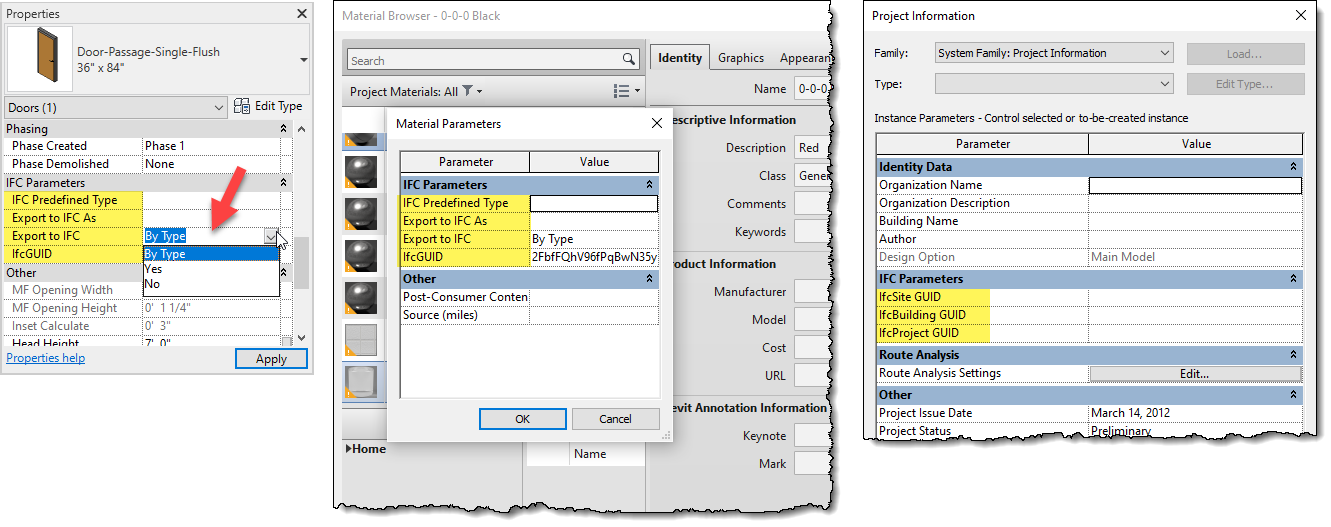

IFC Parameters

This will make a lot of people who work with IFC imports and exports very happy. Everywhere you look within Revit 2023, you will see IFC mapping parameters built-in. Here are just a few examples …

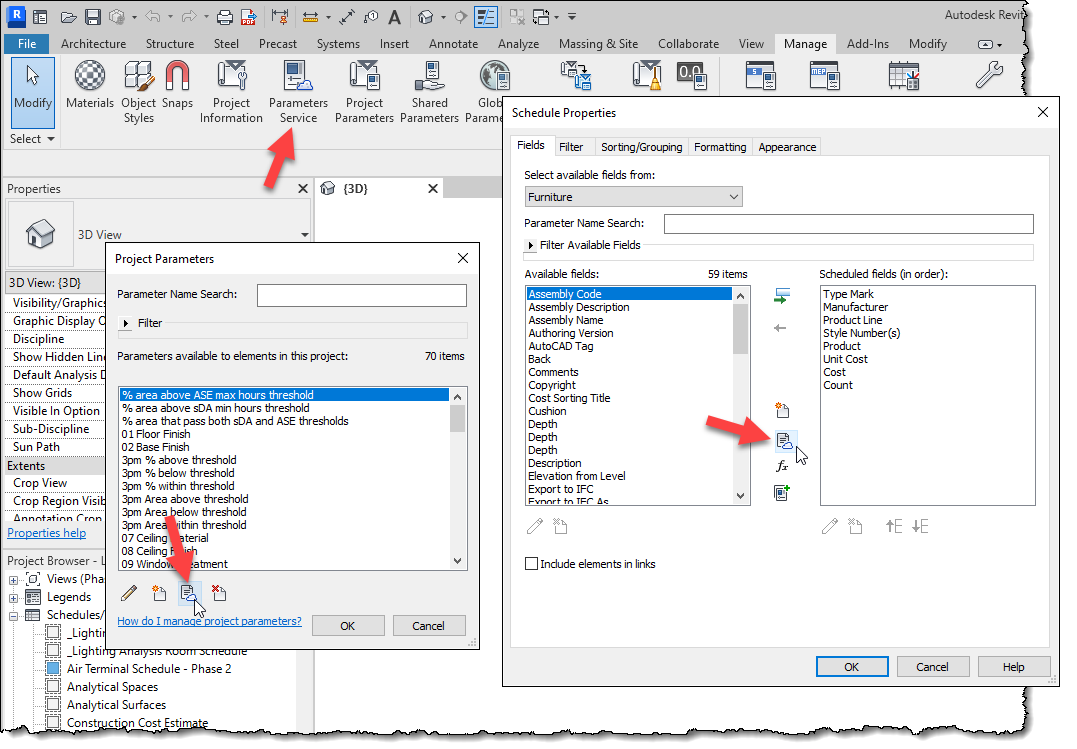

Parameters Service

Autodesk has come up with a new way to manage parameters across multiple design firms. In a robust way, similar to what they have come up with in this release for sharing material textures, we can now create a parameter service. This can be hosted in BIM 360 or on your own server. This functionality started as a Tech Preview, sort of a public beta.

Measure in 3D

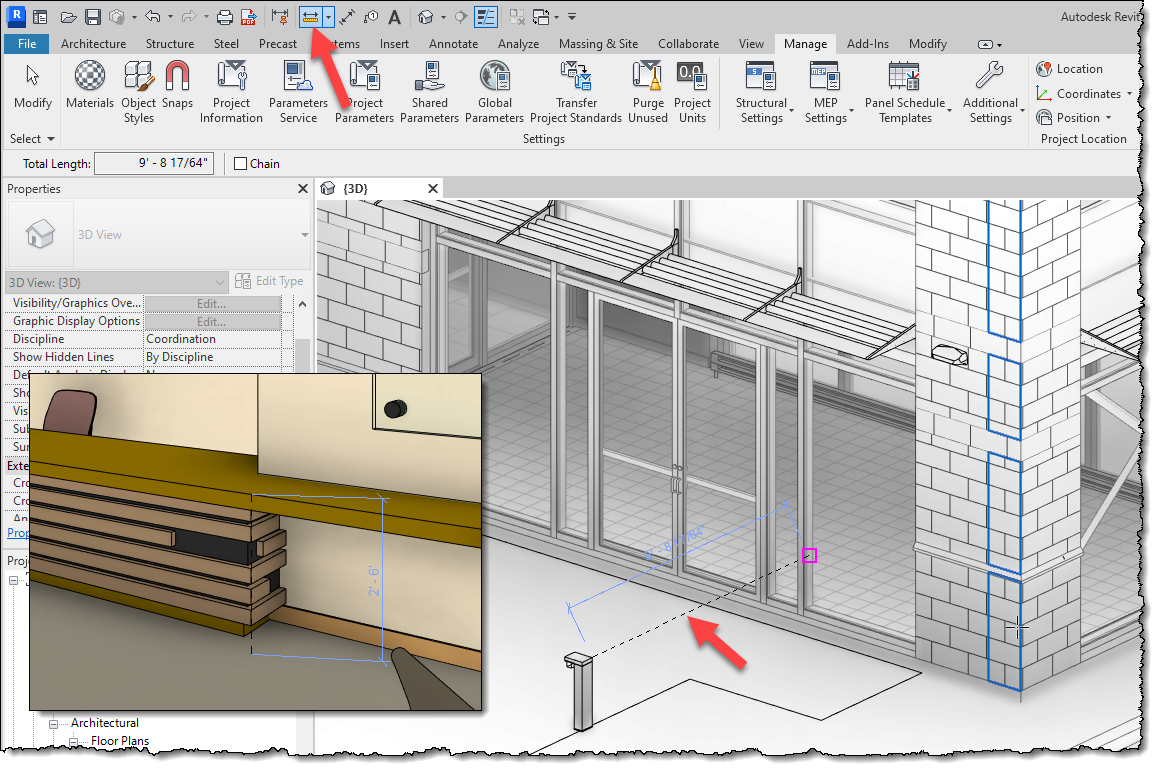

Measure between two points in any 3D view! Hold down control and your second point is a perpendicular reference. This works in all 3D views, including camera views. (Tip: you can also right-click and select the Perpendicular snap override.) Note that the way you select your first point (i.e., the point/plane) determines how the perpendicular option functions for the second point.

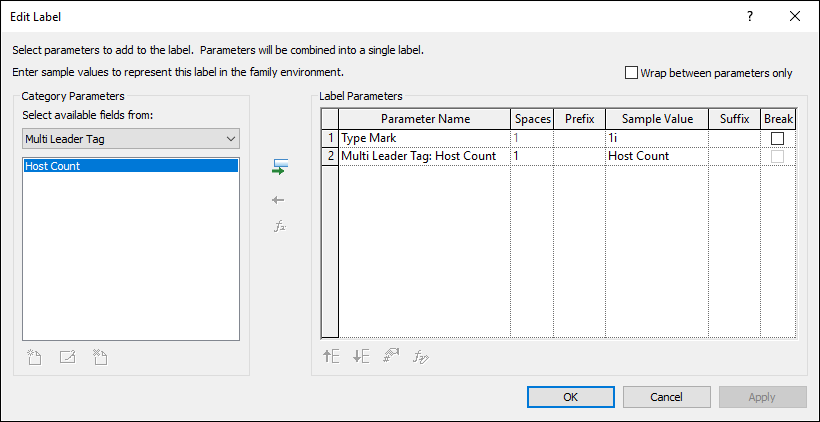

Multi-Leader Tag Enhancements

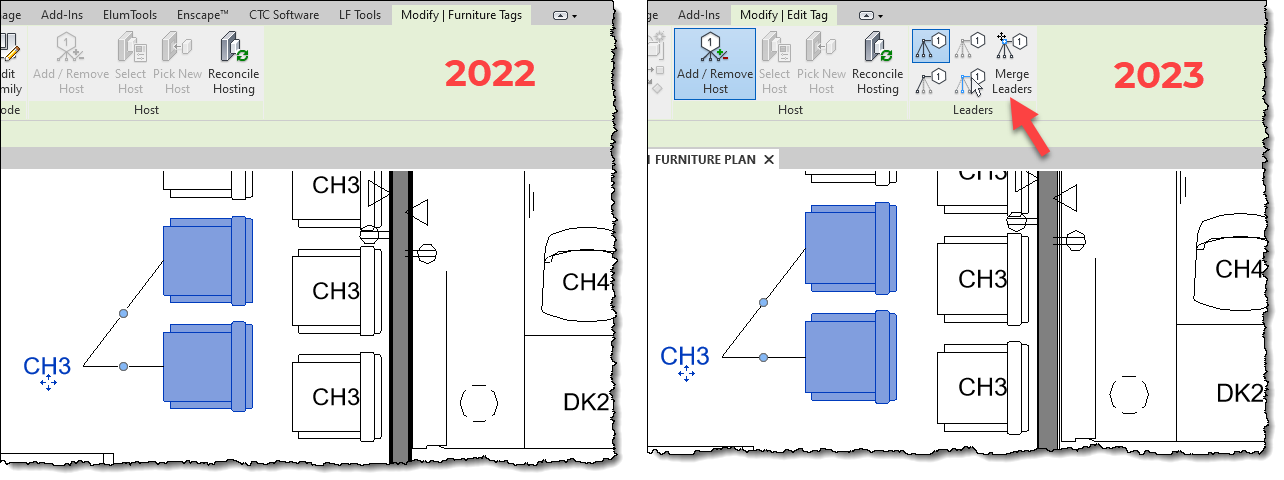

The ability to control the visibility of the leaders and align them has been added. The second image shows a somewhat hidden option (in the Edit Label dialog) to include the count in a multi-leader tag.

Temporary Dimensions Enhancement

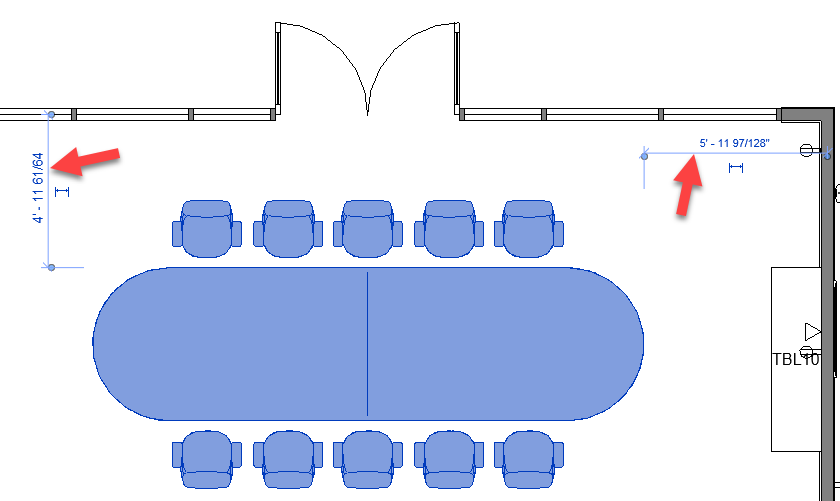

Previously, families with shared nested families would not show temporary dimensions when selected. Now they do, as shown in the example below (conference room table with shared nested chairs).

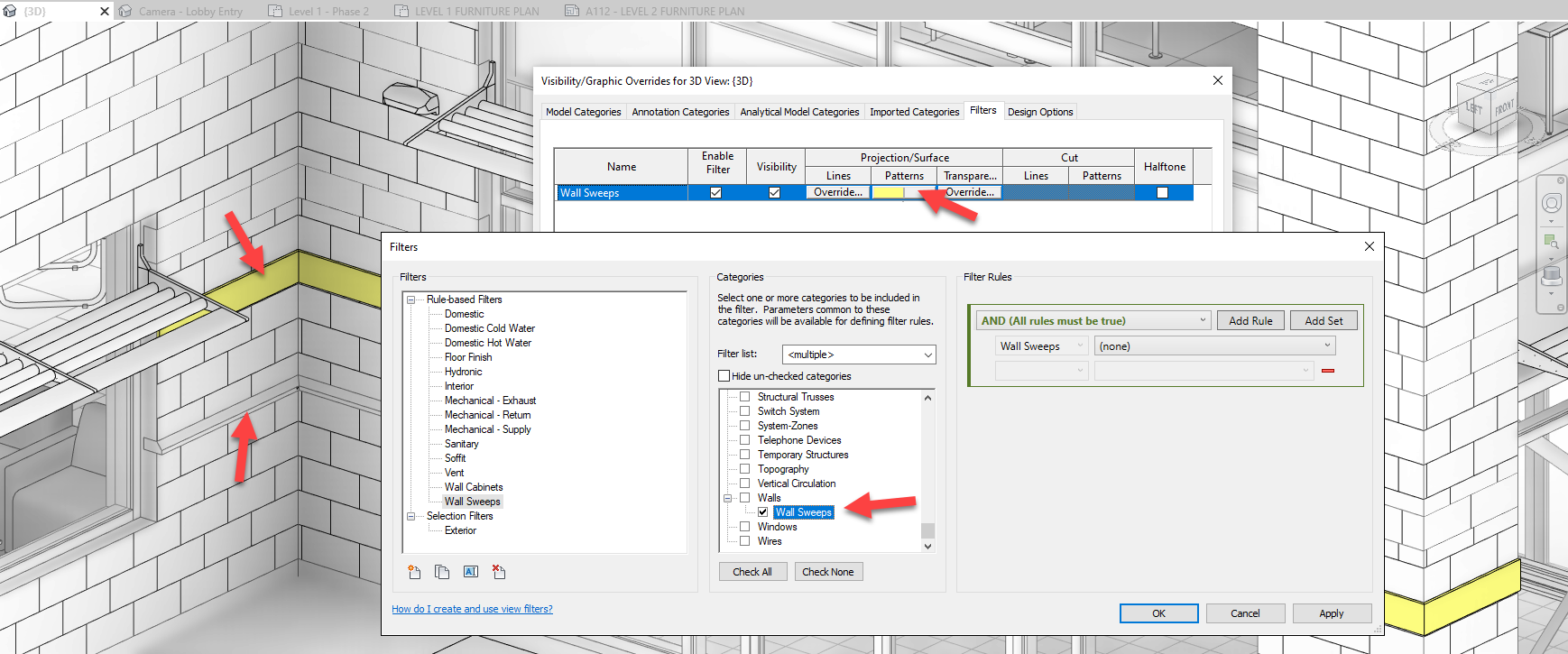

View Filter Enhancement – Wall Sweeps

Wall sweeps are now available when creating a filter, which can then be applied to a view filter. It appears this only works on manually applied wall sweeps, and not ones hosted within the wall type as pointed out in the following image.

View Filter Enhancement – Added Wall Parameters

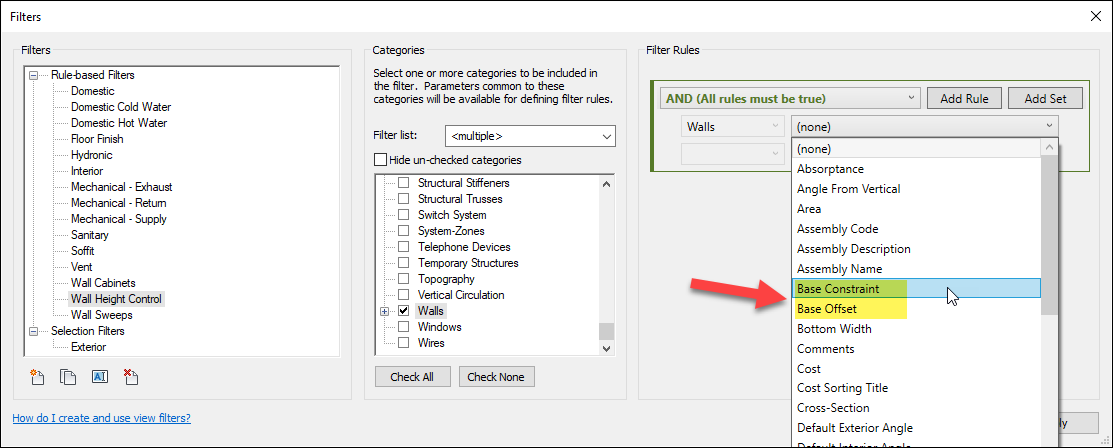

New “rule” parameters have been added for walls: Base Constraint, Base Offset, Top Constraint, and Top Offset. This would allow you, for example, to color code walls to make sure they are all the correct height in a plan view for QA/QC activities.

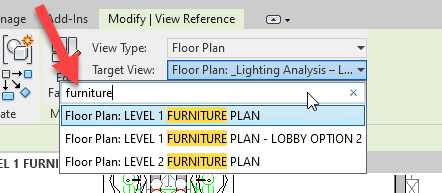

View Reference Enhancement

When using the view reference Target View list, you can now search this list.

Cloud Model Enhancement – Non-destructive Rollback

When cloud models are rolled back, they no longer lose any data. Previously, when a model was rolled back, all data after that point you rolled back to was lost. Now, the rolled back version becomes the latest version, rather than deleting anything.

Link FormIt models

When a linked FormIt model is selected, there is a new Edit in FormIt option to temporarily open FormIt, make changes, and save it back into the open Revit session.

Face-Based Family Enhancement – Save Placement Setting

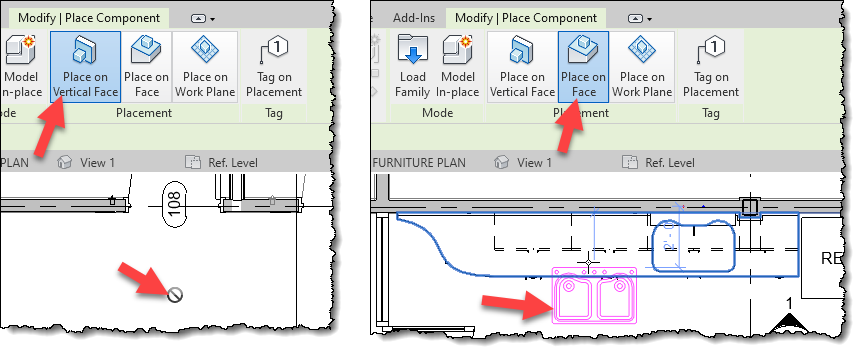

When placing face-based families, the default placement option (i.e., Place on Vertical Face, Place on Face, Place on Work Plane) seems to always be set to the wrong option. Now, once you have changed the placement option for a specific family, the next time you place it, the same placement option will be used as shown below.

Circuit Number property for Electrical Equipment

You can now schedule and tag the circuit number that a piece of electrical equipment is connected to.

Electrical Preliminary Load Analysis

Following the success of Systems Analysis aimed at mechanical engineers in previous versions of Revit, this new feature set allows preliminary electrical loads to be developed without modeling electrical equipment and fixtures and connecting them together. Rather, areas within plan views are established and analytical loads are associated. The results can be managed within the System Browser, within the new Analytical Power Distribution section.

Electrical Content Enhancement – Generic Annotation Orientation Improvements

When I helped create the Electrical Productivity Pack years ago, getting the symbols to behave was a huge challenge. With this enhancement on how symbols are displayed within the model even when content is placed on horizontal or vertical hosts and rotated, the symbols remain properly positioned in plan views.

Elevation Base option added to MEP Segment Tags

A new family Type parameter allows the elevation displayed in a tag to be Relative (original behavior) or be based on Project or Survey Points.

MEP Logical Systems Remain Intact when Elements are set to be Demolished

The intent of this highly requested feature is to keep the MEP logical system intact when a section is set to demolished. I was not involved in this within the Revit beta eco-system, and I don’t work at a firm that does MEP in-house anymore. I do not fully understand why the system should remain intact, and preserve loads (e.g., CFM back to air handling unit) when a section is demolished. In any case, it is an enhancement requested by the community, so it should be well received!

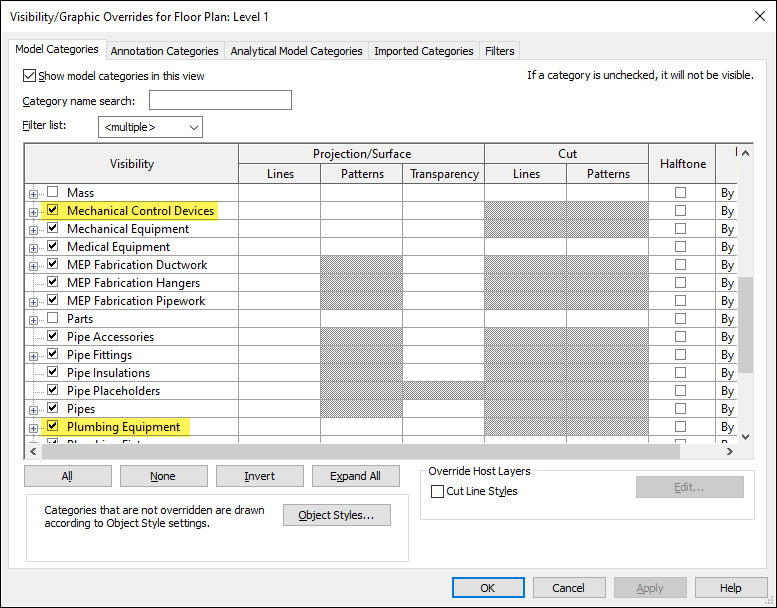

New MEP Categories

To support improved visibility control and documentation, mechanical and plumbing designers get the following two new categories:

  • Plumbing Equipment
  • Mechanical Control Devices

Family Editor Enhancement – Rehost MEP Connectors

Previously, if an MEP connector needed to be moved to a different host, within the family editor, it would need to be deleted and recreated. Now, you can simply use the Rehost option and not lose any of your settings.

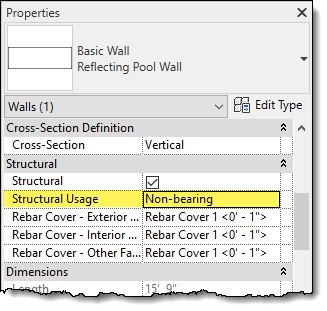

Structural Wall Enhancement – Non-Bearing Option

Concreate and masonry walls always need reinforcing, but they are not always structural bearing walls. Now, walls marked as structural have the option of being identified as Non-bearing to accommodate this situation as shown here.

Structural Content Update

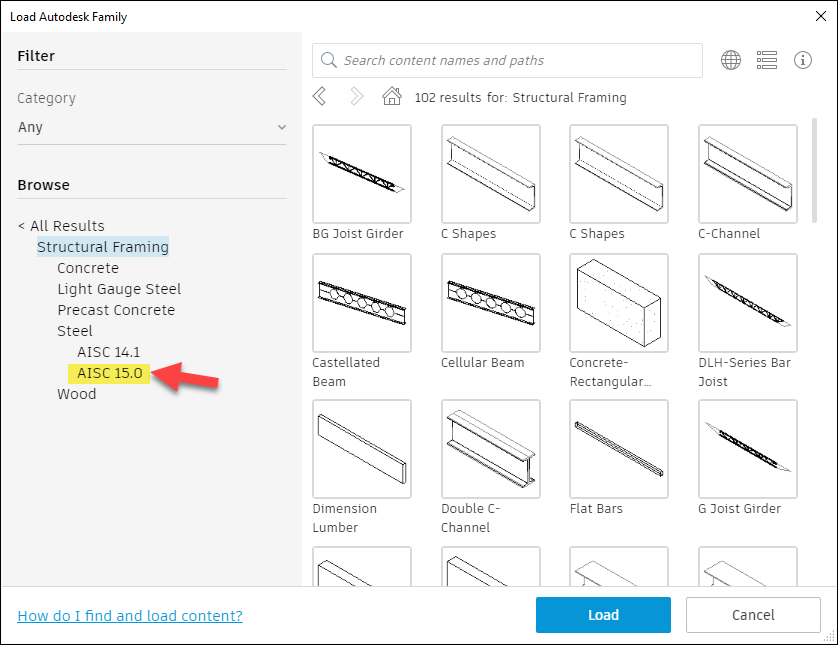

The structural steel shapes have been updated based on the ASIC 15th edition tables.

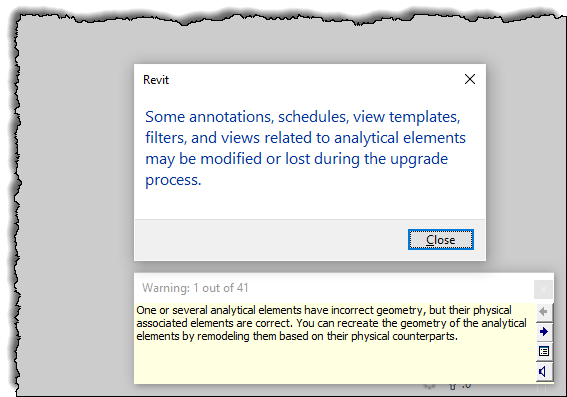

Structural Analytical Model Overhaul

By default, the structural analytical model will no longer be automatically created when structural elements are being created. This will likely cause a warning message when upgrading any Revit model as shown below. Now, the structural engineer has full control over modeling the analytical model, like they would in other structural analysis tools. Revit even supports analytical-first modeling. Rules can be created by project to control what was previously hard coded in the software.

New branding

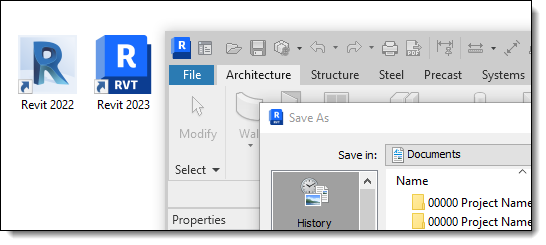

Something everyone will surely be talking about is the new branding. After several years of the same Revit icon, the graphic has changed. This also propagates throughout the entire program, as shown in the example below. All Autodesk products are getting this same treatment this year.

Conclusion

This is another jam-packed Revit upgrade that will surely have features most can use right away! There are still other features and enhancements I was not able to include in this article. Hopefully this article with help you hit the ground running when your firm or school starts using this release.
